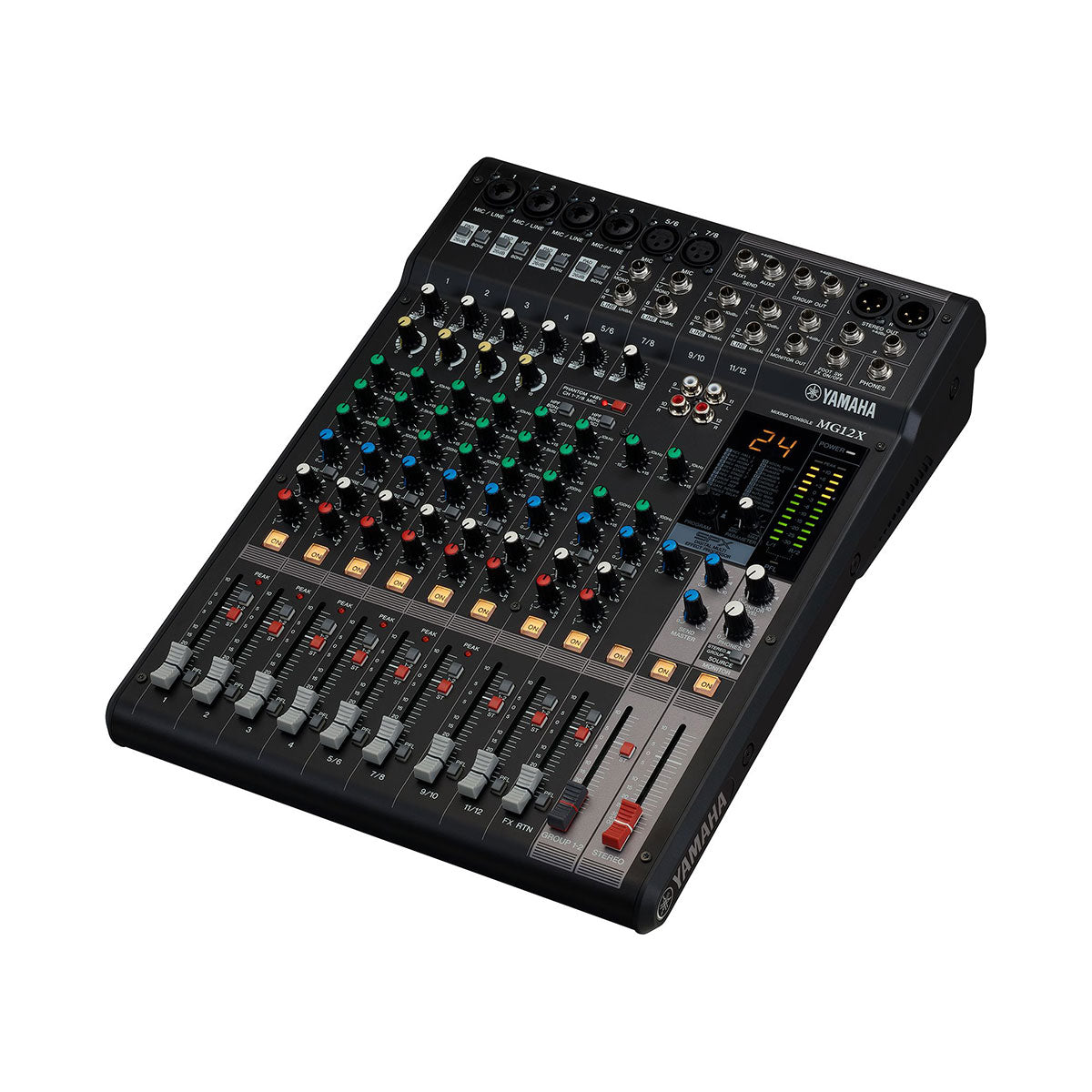

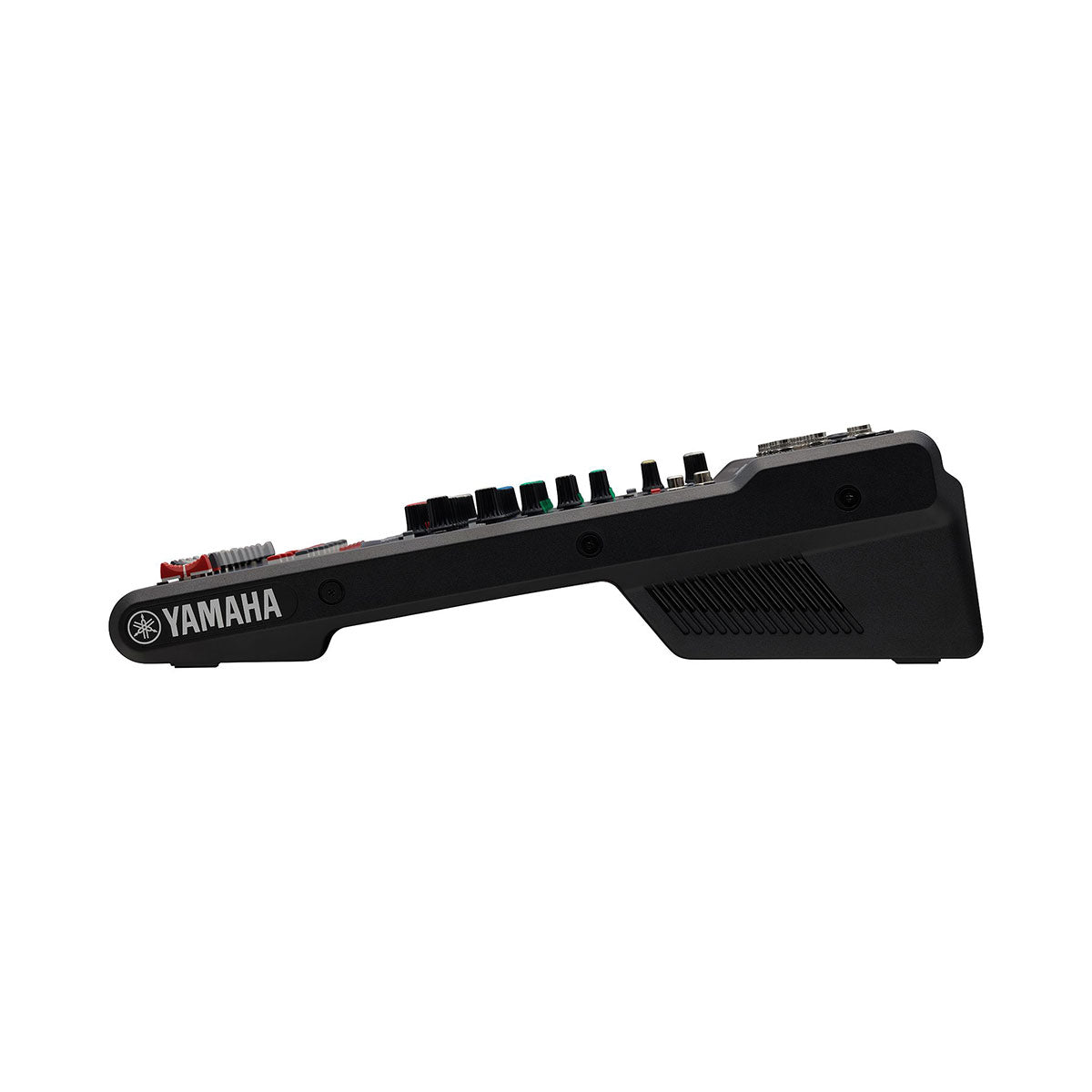

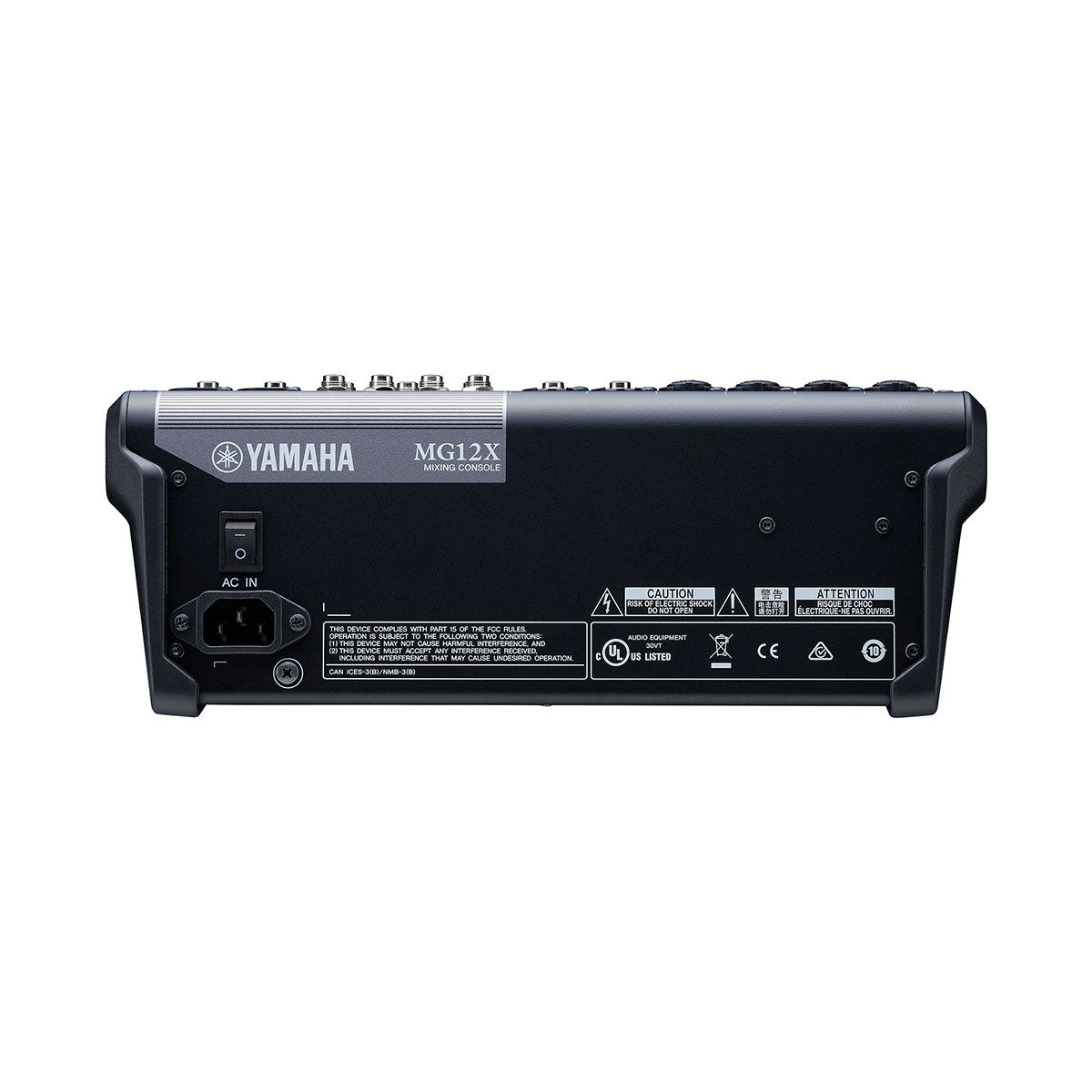

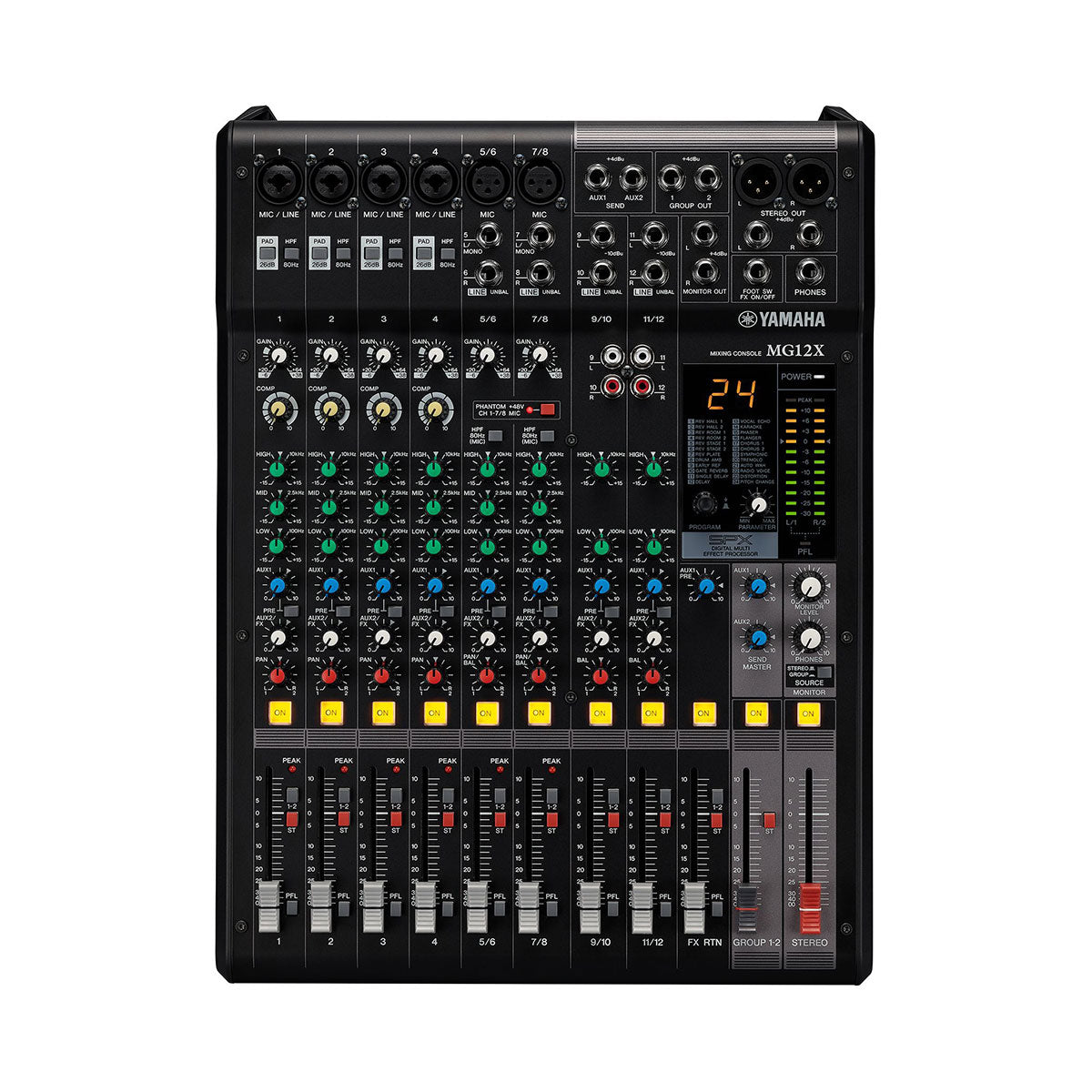

Yamaha MG12X 12-Channel Mixer

The Yamaha MG12X is a professional 12-channel analog mixing console designed for live sound, rehearsals, installations, and recording applications. It combines Yamaha’s renowned D-PRE microphone preamps, 1-knob compressors, professional SPX effects, flexible routing, and a rugged metal chassis in a compact and reliable format. With up to six microphone and twelve line inputs, the MG12X provides plenty of flexibility for bands, venues, houses of worship, and other audio applications.

Type: Analog Mixing Console

Number of Channels: 12

Input Configuration: 4 × Mono MIC/LINE + 2 × Mono/Stereo MIC/LINE + 2 × Stereo LINE

Maximum Inputs: Up to 6 Microphones / 12 Line Inputs

Microphone Preamps: D-PRE Mic Preamps with Inverted Darlington Circuit

Phantom Power: +48V

PAD: 26 dB PAD on Mono Inputs

Compressors: 1-Knob Compressors on Channels 1–4

Channel EQ: 3-Band EQ with High, Mid, and Low Controls

Built-In Effects: SPX Effects with 24 Programs

Buses: 2 GROUP Buses + 1 Stereo Bus

AUX: 2 AUX Sends, including FX

Outputs: Stereo Out, Monitor Out, Phones, AUX Send, and Group Out

Main Outputs: XLR Balanced Stereo Outputs

Level Meters: Stereo 12-Segment LED Level Meters

Rack Mounting: Compatible with optional RK-MG12 Rack Mount Kit

Construction: Rugged Metal Chassis

Power Supply: Internal Universal Power Supply

Dimensions: 308 × 118 × 422 mm (12.1" × 4.6" × 16.6")

Weight: 4.2 kg (9.3 lbs)

Ideal For: Live sound, bands, rehearsals, recording studios, houses of worship, events, installations, and mobile sound systems

Get the Yamaha MG12X 12-Channel Mixer from Musical Buddies and enjoy Yamaha’s renowned sound quality, professional processing, and reliable performance in a versatile analog mixing console.
