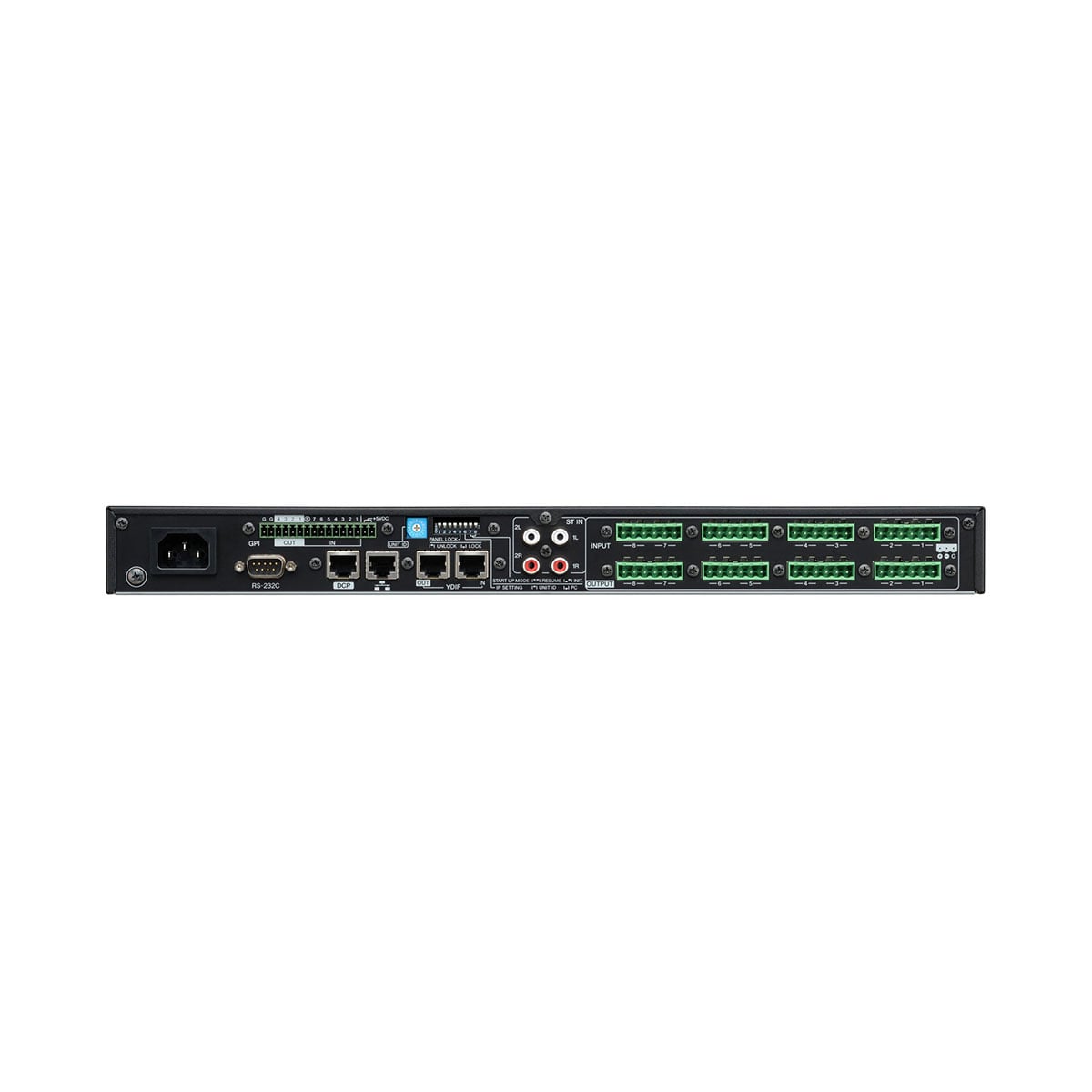

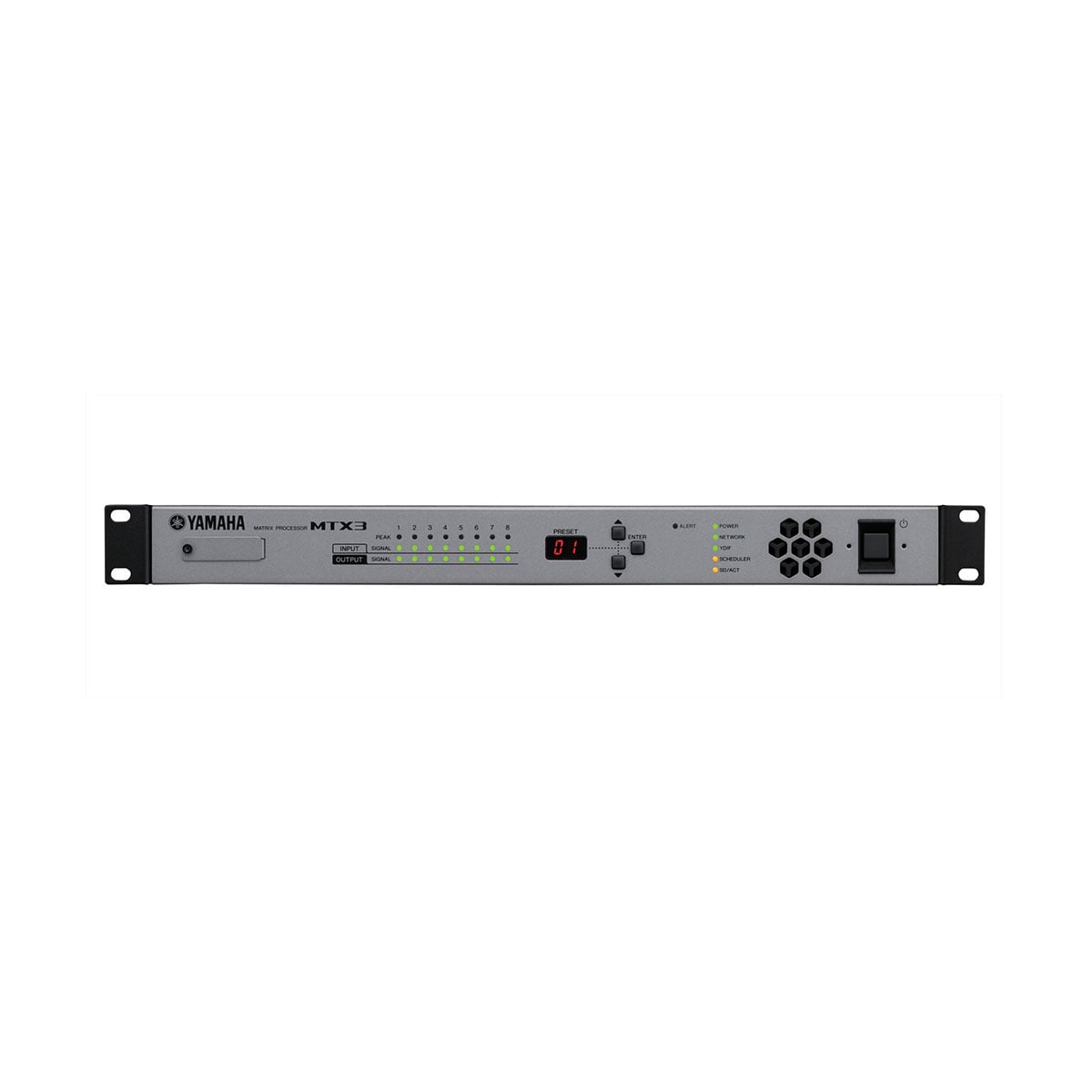

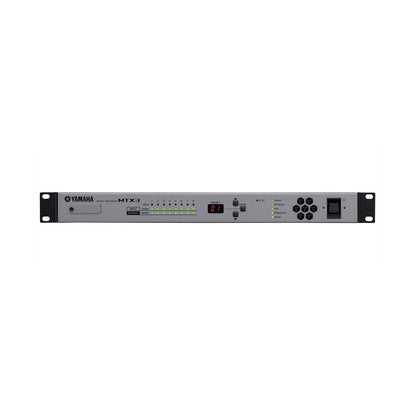

Yamaha MTX3 Matrix Processor

A matrix processor that you configure, program and manage through the MTX Editor software.

Features

• Mixing channels: 8 mono + 3 stereo + 2 effect return + 8 direct-in to matrix / Output buses: 8 mono
• Total harmonic distortion: less than 0.05% (+4dBu, Gain -6dB), less than 0.1% (+4dBu, Gain +66dB)
• Hum & noise level (equivalent input noise): -60dBu (Gain +66dB), -83dBu (Gain -6dB)

Specifications

• Brand: Yamaha
• Model: MTX3
• Phantom power: +48V
• Internal processing: Priority Ducking, Ambient Noise Compensator
• Sampling frequency rate (internal): 48kHz/44.1kHz
• Frequency response: 20Hz to 20kHz, +0.5dB, -1.5dB
• Dynamic range: 107dB (Gain -6dB)
• Crosstalk: -100dB
• Heat dissipation: 43kcal/h max
• Power requirements: AC100V-240V 50Hz/60Hz

Ideal For

• Install and sound-system designers
• Venues and commercial spaces
• Multi-zone audio systems

Available at Musical Buddies Lebanon – offering genuine Yamaha products with trusted local service and support.
