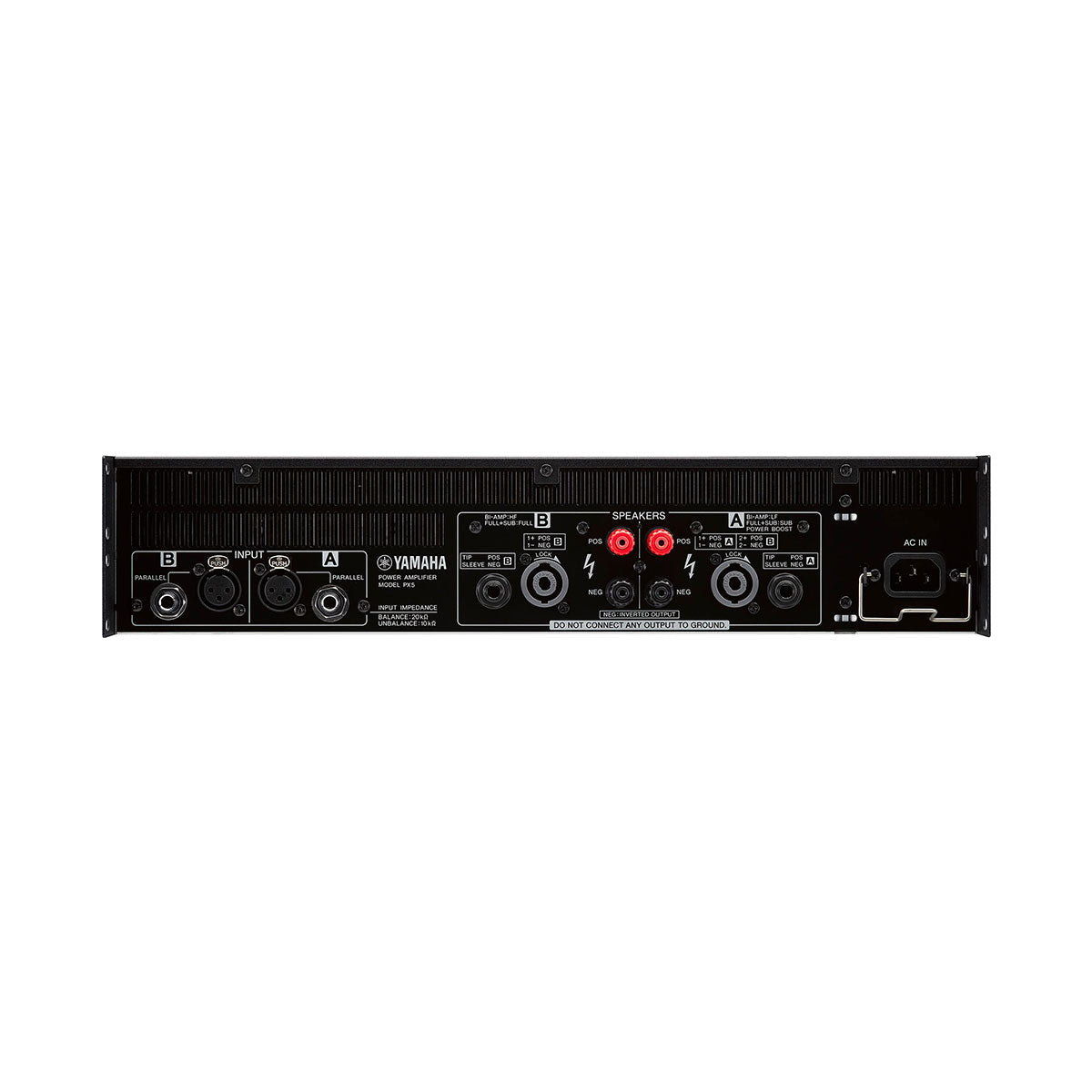

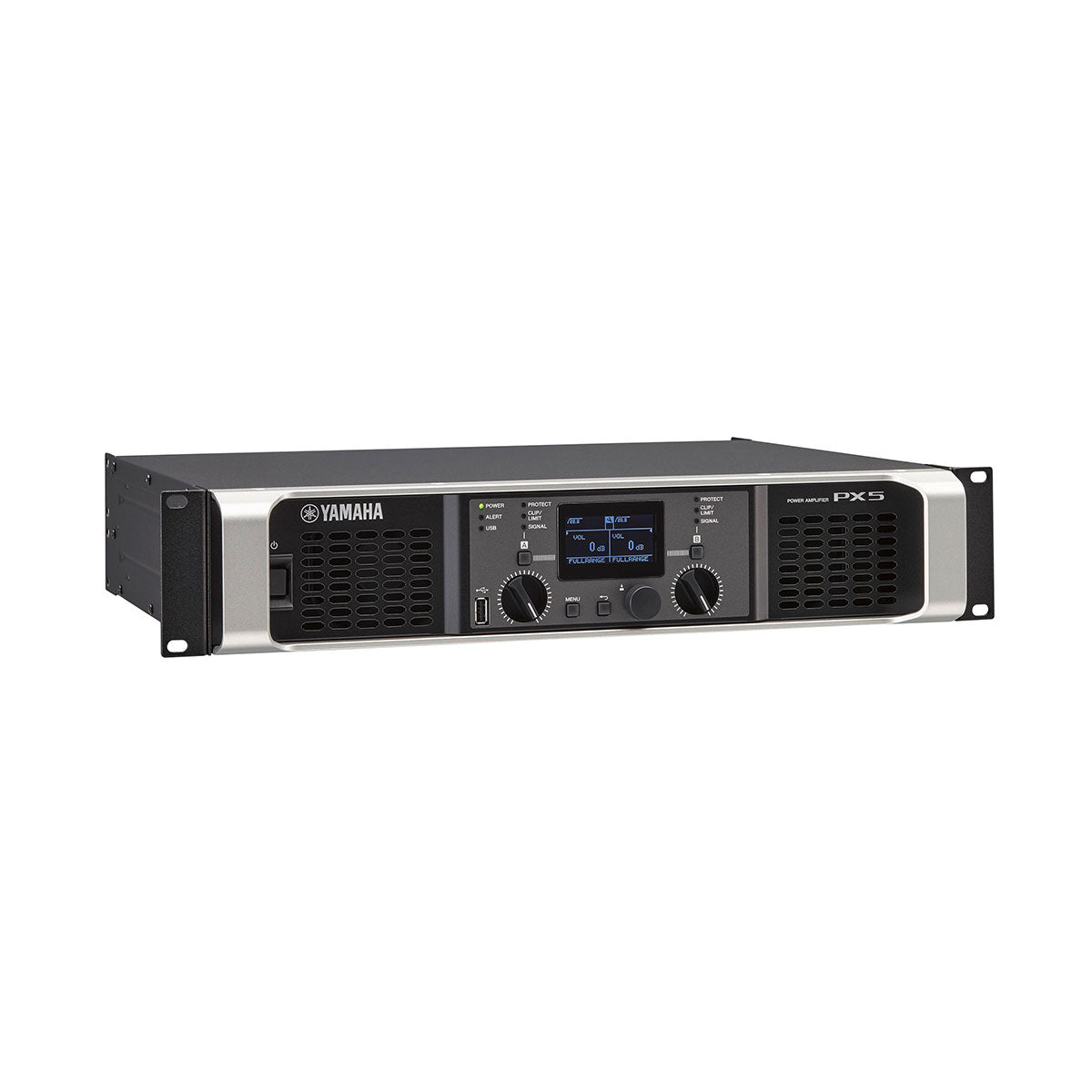

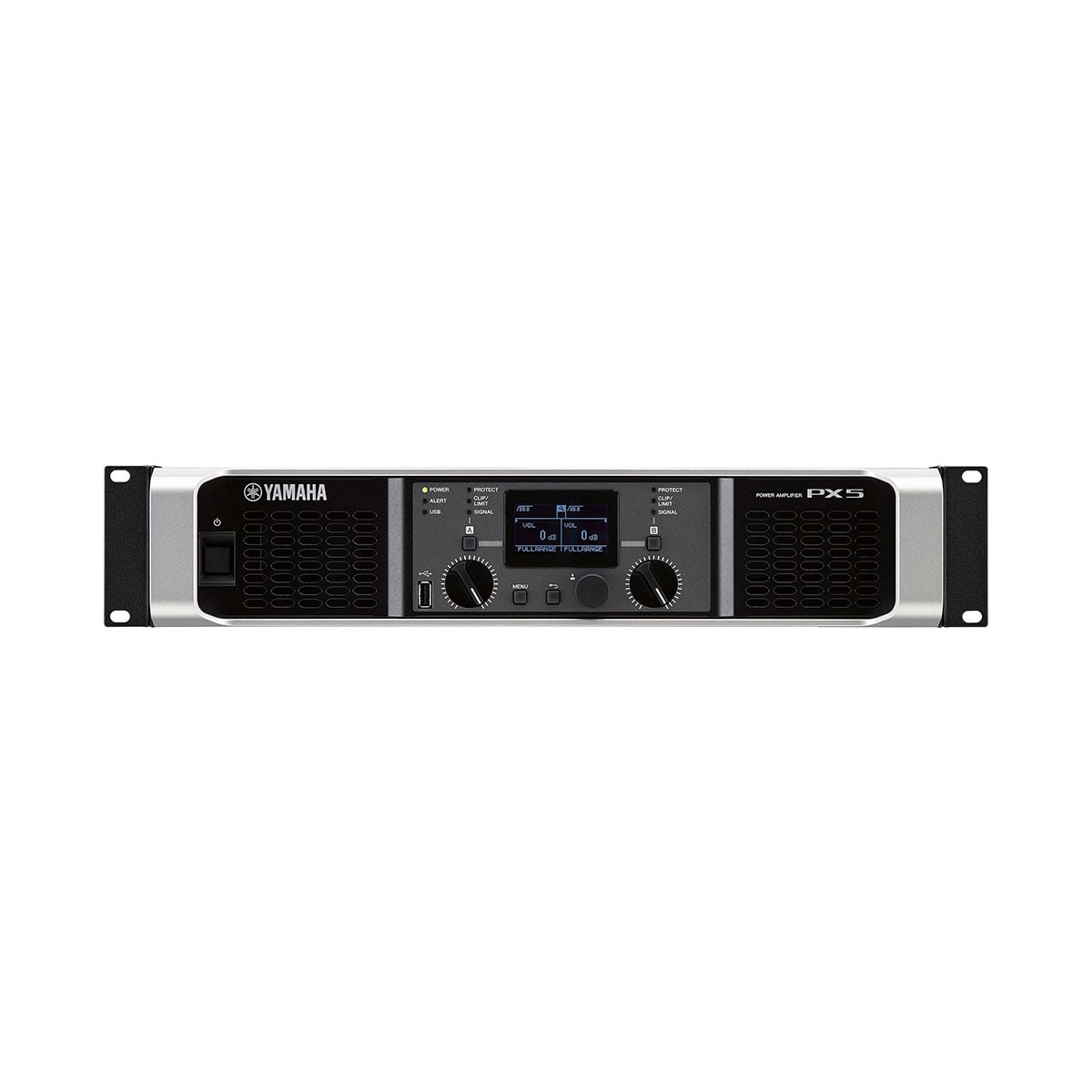

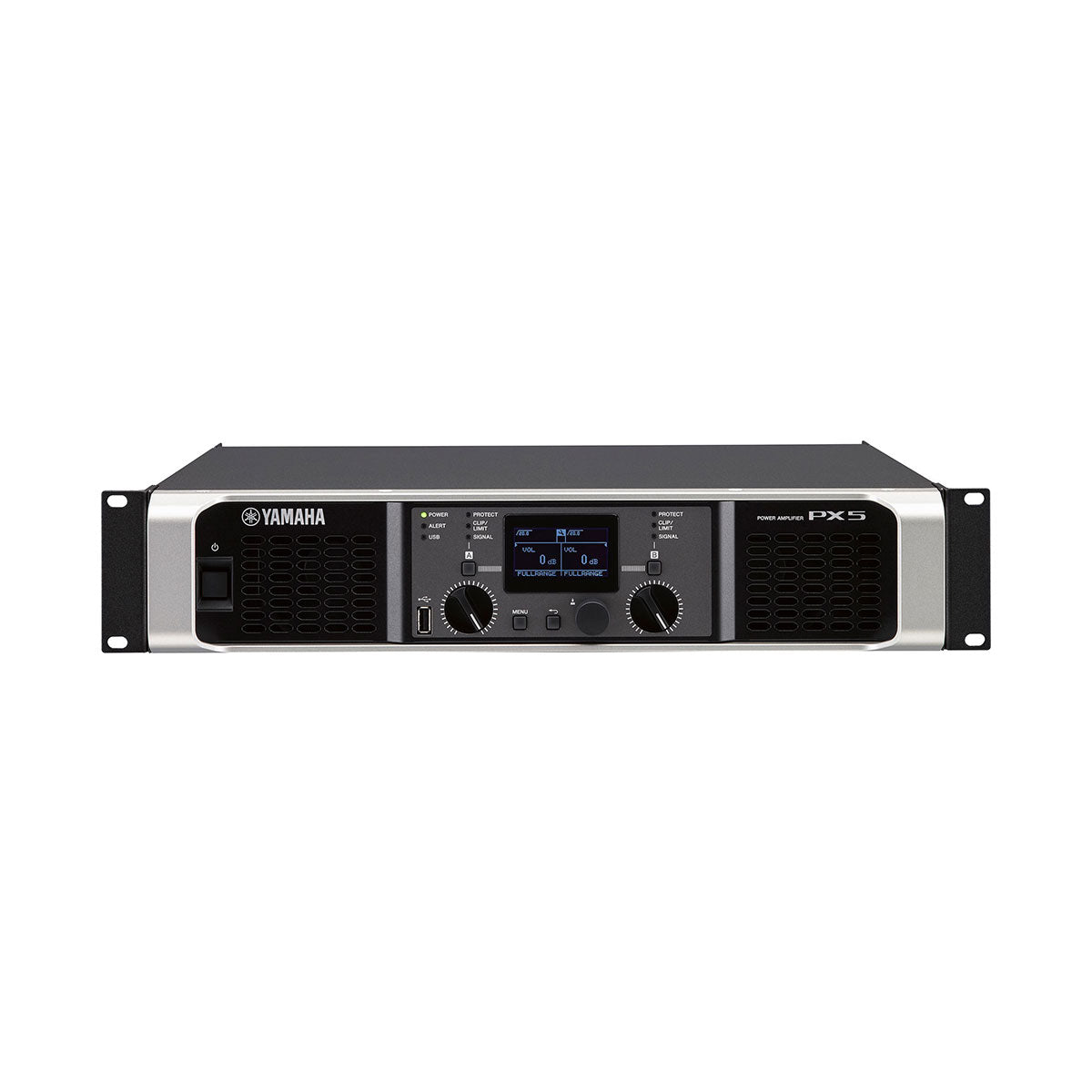

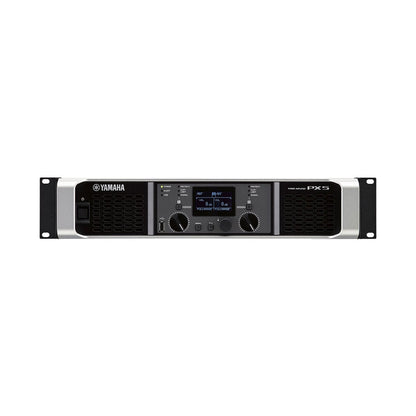

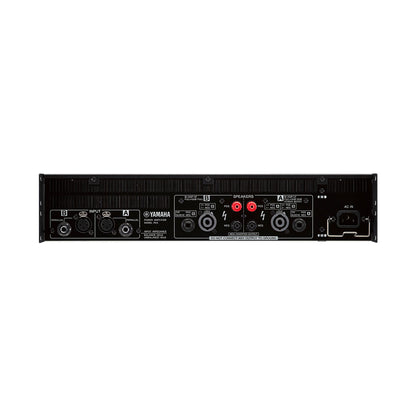

Yamaha PX5 Power Amplifier

A power amplifier from the PX series that combines intelligent processing with high output power for sound reinforcement.

Specifications

• Brand: Yamaha
• Model: PX5
• Output power (1kHz, non-clip, 20ms burst, both channels driven): 8Ω: 500W x 2
• 8Ω / Power Boost Mode: 800W x 1
• Sampling frequency: 48kHz
• A/D D/A converters: 24-bit linear, 128 times oversampling
• Total harmonic distortion: 0.1% (1kHz, 10W), 0.3% (1kHz, half power)
• Frequency response: ±1.0dB (1W, 8Ω, 20Hz to 20kHz)
• S/N ratio: 100dB (A-weighted, 8Ω, gain +14dBu)
• Crosstalk: less than -60dB (half power, 8Ω, 1kHz)

Ideal For

• Installed sound systems
• Venues and touring rigs
• Rental and production companies

Available at Musical Buddies Lebanon – offering genuine Yamaha products with trusted local service and support.
